Figure C.05 - Customer Interaction: Types of Requests

Header Image

MODA / Information Framework / Business Entity / Customer Domain / Customer Interaction ABE / Figure C.05 - Customer Interaction: Types of Requests

Project:

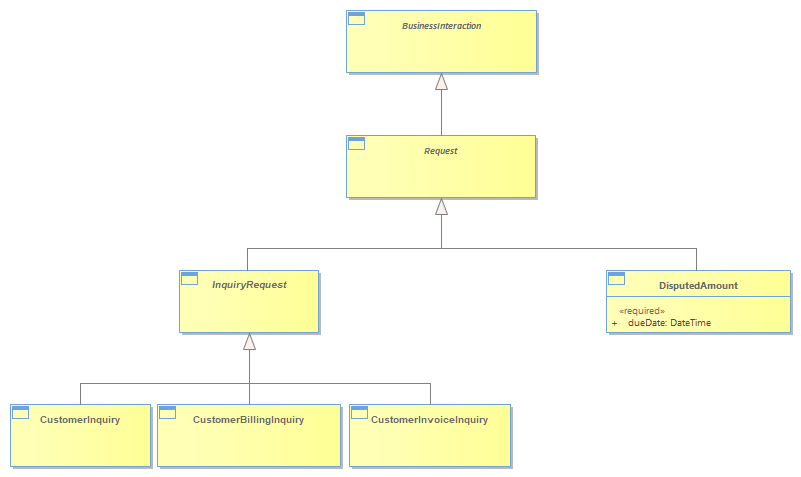

Figure C.05 - Customer Interaction: Types of Requests : Class diagram
Created: 3/28/2022 3:51:09 PM
Modified: 12/3/2024 9:37:07 AM
Project:
Advanced:
The Customer Interaction Aggregate Business Entity has not been fully detailed at the time of this writing.  Currently, there are six business entities in the model as shown in the figure below.  Customer interactions take the form of requests (CustomerInquiry, CustomerBillInquiry, and CustomerInvoiceInquiry) and responses (CustomerQuoteOrOffer).<br/>
