Figure SO.30 - Summary Relationships Between ServicePackage and ServiceBundle : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
12/24/2024 9:39:59 PM
Project:
Author:
Giu Platania
Version:
1.0.0
Advanced:
ID:
{DBC03D15-C0E8-4d8b-8432-8D5A7ADBE95B}

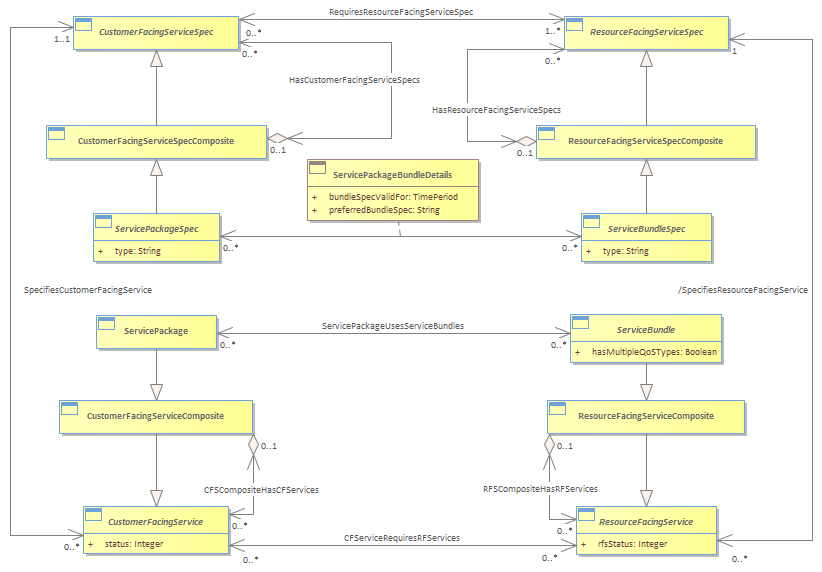

A summary view of the important (not all!) relationships between ServicePackageSpec, ServicePackage, ServiceBundleSpec, and ServiceBundle, and their parent classes (again, not all!) is shown in the Figure below. This figure was drawn in order to emphasize the symmetry that exists between ServiceSpecifications and Services.<br/>
