Figure CL.03 - Detailed Closed Loop

Header Image

MODA / Information Framework / Business Entity / Patterns Domain / Closed Loop ABE / Figure CL.03 - Detailed Closed Loop

Project:
Figure CL.03 - Detailed Closed Loop : SID diagram
Created: 8/11/2022 8:52:03 AM
Modified: 12/26/2023 7:58:57 AM
Project:
Advanced:

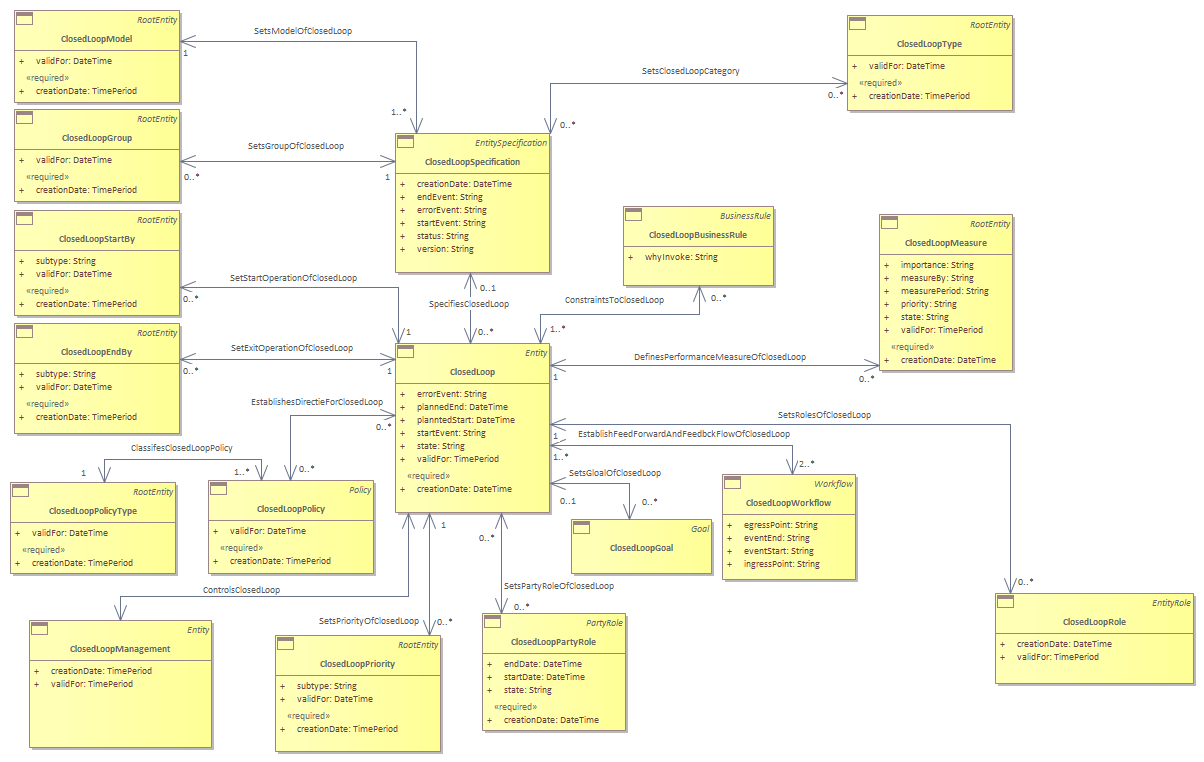

The figure below provides a more detailed view of entities that make up a full Closedloop SID model to support managing ClosedLoop in a lifecycle manager. The pattern shows a defined ClosedLoop that is fully specified based on the ClosedLoopSpecification business entity, and that can be associated with one or more ClosedLoopGoal(s). and a managed state model ClosedLoopState.  <br/>
