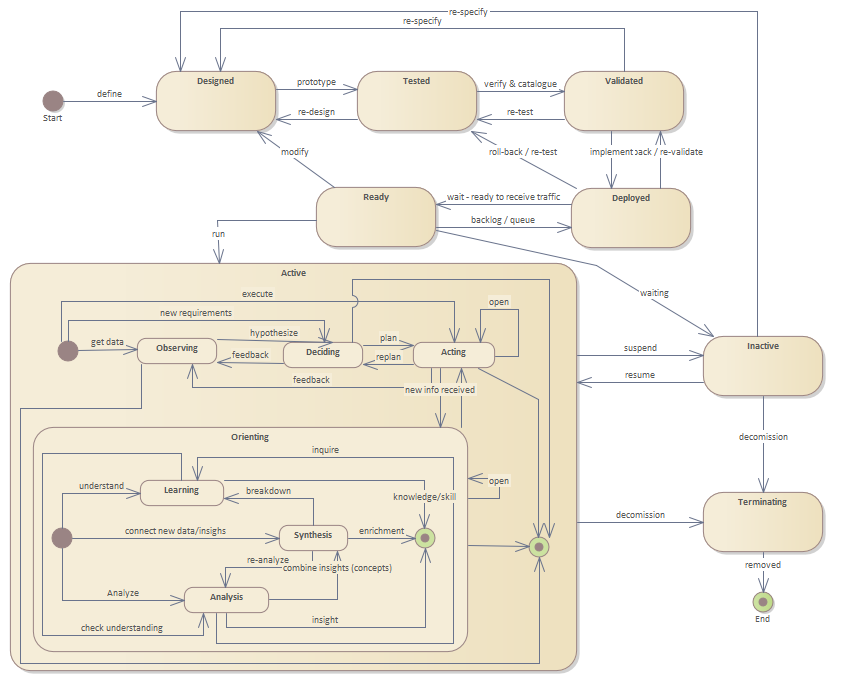

Figure CL.04 - ClosedLoop Lifecycle

The state model of closedLoop represents the lifecycle from defining a closedLoop, prototyping it ,verifying and cataloguing and putting it into operations. <br/>The simple view presents the high-level states, with the closed loop as a single entity that is managed.  <br/>
