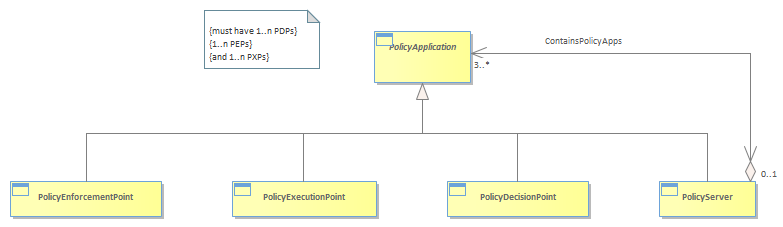

Figure 1P-21 - PolicyApplication Subclasses : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
9/16/2023 8:56:10 PM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{F6BA1660-AABB-489f-B4CF-FE4CDB15125A}
The PolicyApplication class is used as a convenient point for defining relationships to different managed entities. It has four principal subclasses: PolicyServer, PolicyDecisionPoint (PDP), PolicyExecutionPoint (PXP) and PolicyEnforcementPoint (PEP). <br/>Figure below has been simplified by removing all relationships except the ContainsPolicyApps aggregation. The OCL expression shown in the ContainsPolicyApps aggregation ensures that a PolicyServer has at least one or more PolicyDecisionPoints, PolicyExecutionPoints, and PolicyEnforcementPoints. This is the minimum amount of functionality required to specify a PolicyServer. Note that a PolicyServer can have additional functionality specified; however, that is only relevant in the system view, and hence will not be discussed further in this document.<br/>
