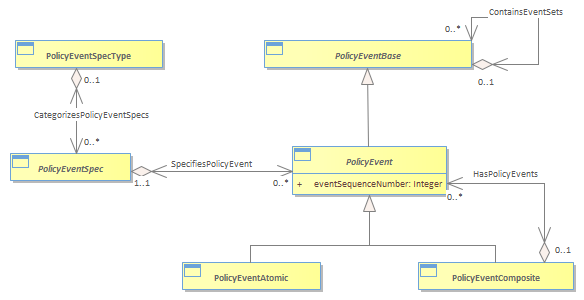

Figure 1P-32 - PolicyEventType : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/16/2023 9:25:13 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{FF615211-6F49-44cc-B166-B1A8C78F9DAE}

There are multiple types of PolicyEvents. These may be categorized according to their type, which is shown in Figure below.<br/>The PolicyEventSpecType class defines a generic category of PolicyEventSpecs. Each PolicyEventSpecType serves to group a set of particular PolicyEventSpecs that share the same behavior and other semantics. One result of this is to be able to more efficiently define a set of related PolicyEventSpecs that can be grouped together to form a higher-level, or composite, PolicyEventSpec.<br/>
