Figure 1P-27- Policy Application Detailed Diagram

MODA / Information Framework / Business Entity / Patterns Domain / Policy ABE / Figure 1P-27- Policy Application Detailed Diagram

Project:

Policy Application ABE
Policy Framework ABE
Policy Framework Spec ABE
Policy Management ABE
Policy Structure ABE
Figure 1P-1. Frameworx Viewpoints
Figure 1P-2. Level One of the Policy Domain of the SID Framework
Figure 1P-3. Level Two of the Policy Domain of the SID Framework
Figure 1P-4. The Concept of Model Mapping
Figure 1P-08 - Conceptual PolicyRule
Figure 1P-09 - PolicyRule
Figure 1P-09a - Event Condition Action
Figure 1P-10 - PolicyGroup
Figure 1P-11 - Simple PolicySet
Figure 1P-12 - Detailed PolicySet
Figure 1P-13 - Common Evaluation Semantics for PolicyGroups and PolicyRules
Figure 1P-14- Simple PolicyEvent
Figure 1P-15 - Simple PolicyStatement
Figure 1P-16 - Simple PolicyVariable
Figure 1P-17 - Simple PolicyValue
Figure 1P-18 - Simple PolicyCondition
Figure 1P-19 - Simple PolicyAction
Figure 1P-20 - PolicyApp Interactions
Figure 1P-21 - PolicyApplication Subclasses
Figure 1P-22 - Anatomy of a PolicyServer
Figure 1P-23 - PolicyBroker
Figure 1P-24 - Principal Relationships of a PolicyDecisionPoint
Figure 1P-25 - Principal Relationships of a PolicyExecutionPoint
Figure 1P-26 - Principal Relationships of a PolicyEnforcementPoint
Figure 1P-27- Policy Application Detailed Diagram
Figure 1P-28 - PolicyApp Roles
Figure 1P-29 - PolicyAppRole Subclasses
Figure 1P-30 - Policy Management Overview
Figure 1P-31- PolicyEventSpec
Figure 1P-32 - PolicyEventType
Figure 1P-33 - PolicySetSpec
Figure 1P-34 - PolicyRuleSpec
Figure 1P-35 - PolicyConditionSpec
Figure 1P-36 - PolicyActionSpec
Figure 1P-37 - PolicyStatementSpec
Figure 1P-38 - Policy ABE - PolicyApp ABE Interaction

Figure 1P-27- Policy Application Detailed Diagram : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/16/2023 9:16:24 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{910A0F7D-A76D-4942-A321-4DE09AF58ECD}

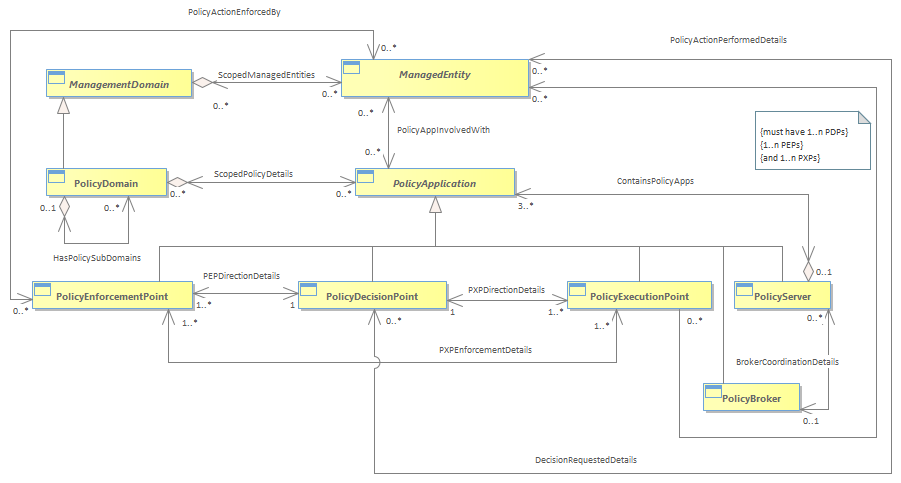

Following Figure shows a combined view of the PolicyApplication entity. All association classes have been suppressed to simplify the figure. <br/>
