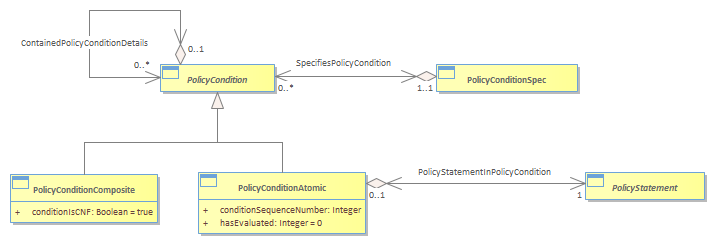

Figure 1P-35 - PolicyConditionSpec : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/16/2023 9:25:51 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{AFE2D275-C6C6-4529-8636-9833177DC206}

A PolicyConditionSpec is a concrete base class that is used to define the invariant characteristics (attributes, methods, constraints and relationships) of a PolicyCondition entity.<br/>There are no business attributes that are currently defined for the PolicyConditionSpec. Its primary function is to define the appropriate structure of PolicyConditions for a given application. This is shown in Figure below.<br/>
