Figure Proj.00b - project deliverables

MODA / Information Framework / Business Entity / Patterns Domain / Project ABE / Figure Proj.00b - project deliverables

Project:

Activity ABE
Project Calendar ABE
Project Element ABE
Project Resource ABE
Project Role ABE
Project Scope ABE
SCRUM Blade ABE
Work Breakdown Structure ABE
Work Order ABE
Figure Proj.00 - project vision
Figure Proj.00b - project deliverables
Figure Proj.01 - basic structure
Figure Proj.01 Illustration - basic structure: WBS Example
Figure Proj.02 - detailed structure
Figure Proj.02 Illustration - ProjectElement Relationships Table 1 – Relationship Types
Figure Proj.02 Illustration - ProjectElement Relationships Table 2 - DependencyTypes (from [PSL])
Figure Proj.02 Illustration - ProjectElement Relationships Fig 3 – ProjectElement DependencyTypes
Figure Proj.02 Illustration - ProjectElement Relationships Table 3 - Constraint Types
Figure Proj.04 - element relationships
Figure Proj.04 Illustration- element relationships Table 1 - Allowable Project Relationships
Figure Proj.05 - specification
Figure Proj.05a Activity lifecycle
Table 5 – ProjectResource & Activity Status Example 1
Table 6 – ProjectResource & Activity Status Example 2
Figure Proj.07 - project roles
Figure Proj.08 - Project Calendar
Figure Proj.09 - Project Triggers
fig 4 – Intrinsic & Contextual ProjectResource Characteristics
Figure Proj.11 - Work Orders
fig 5 – ABC Costing Concepts
Table 7 – Costing Model Example
Figure Proj.13 - costing overview
Figure Proj.14 - SCRUM blade
AtomicProjectDeliverable
AtomicVision
CompositeProjectDeliverable
CompositeVision
CompoundProject
Cost
Milestone
PartyResource
Project
ProjectDeliverable
ProjectDeliverableVersion
ProjectEvent
ProjectScope
ProjectSpec
SimpleProject
Vision
WorksProgram
Activity lifecycle

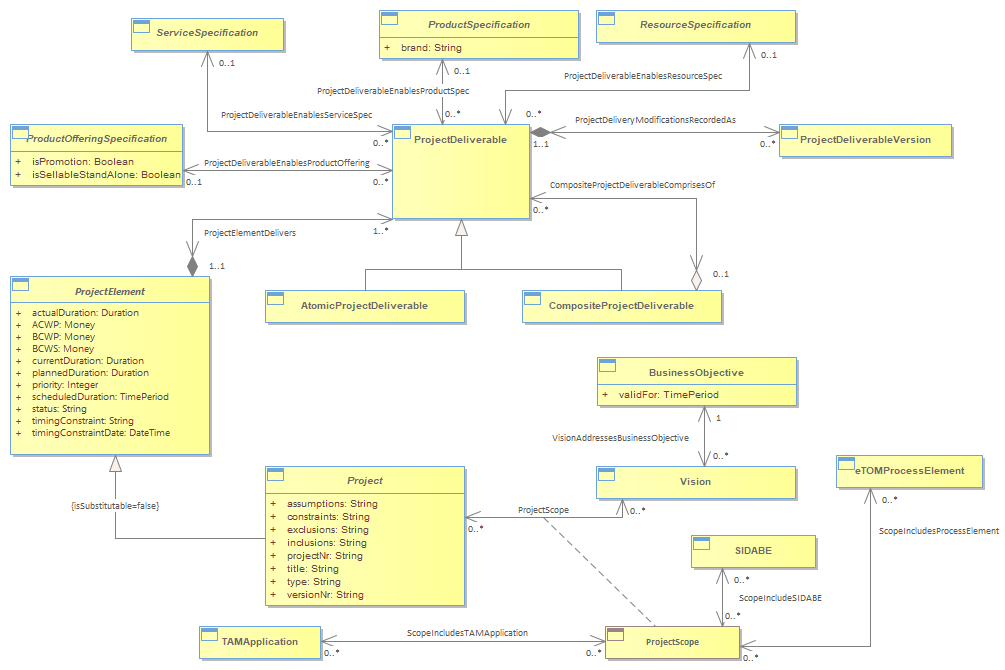

Figure Proj.00b - project deliverables : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/11/2024 2:16:10 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{FB92327B-722E-4355-8720-ED37A0FF47EE}

The ProjectScope defines the "functional area" impacted by a project that can be expressed by eTOM process elements, SID entities and/or TAM application which might be affected by the project. In a multi-project environment (or a program) the scopes of those projects might be structured in a (composite) hierarchy.<br/>Aligned with the strategical goals of the organization projects provide value by enabling Service-, Resource- and ProductSpecifications and/ or ProductOfferings, as shown in figure below.<br/>
