Figure A.06 - Aggrement Item Inherited Associations With Product, Service, and Resource : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/11/2024 2:08:04 PM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{784BB5AE-806C-4dc4-A9FD-842A94D26982}

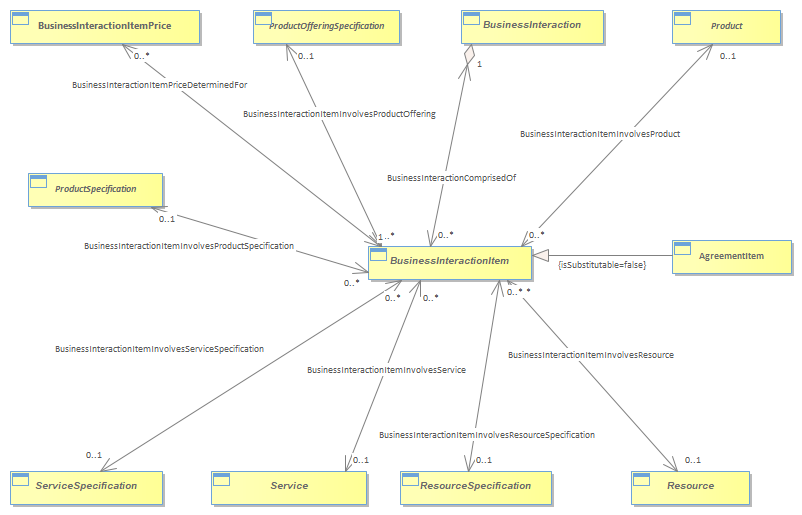

The associations to Product, Service, and/or Resource, along with their associated specifications, are inherited from the BusinessInteractionItem business entity, which is shown in the figure below.<br/>
