Figure CP.02 - Configuration Specs Associations : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/15/2023 3:18:10 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{FA08C079-B7FE-4b60-9A1A-75F085B58FCC}

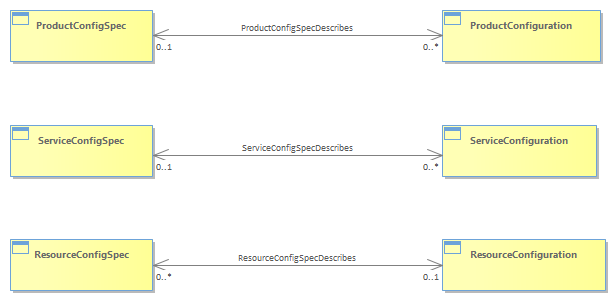

The following Figure emphasizes the reusability of the various Configuration Specifications. So, for example, a single instance of ProductConfigSpec could be applies to many ProductConfiguration instances. <br/>
