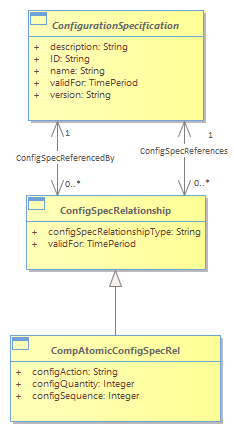

Figure CP.02a - Configuration Specification Relationship

The following Figure shows additional details about the relationships that can be defined among ConfigurationSpecifications.<br/>A type of ConfgSpecRelationship that represents a group of ConfigurationSpecifications that are used to configure a ConfigurationSpecification that is made up of other ConfigurationSpecfications. For example, the ConfigurationSpecification for a connection may be composed of the specification for the connection as well as the specification for connection termination points that are assigned to the connection.<br/>The configSequence attribute specifies the order in which a related ConfigurationSpecification that is part of a group (composite) is to be configured. The configAction attribute represents a prescribed action that is taken for a ConfigurationSpecification that is part of a group (composite).  For example, "assign" a connection termination point to a connection. The configQuantity attribute is a number that represents how many of a related ConfigurationSpecification in a group (composite) are to be configured.<br/>
