Figure CP.04 - Configuration Spec Characteristic Constraints

MODA / Information Framework / Business Entity / Patterns Domain / Configuration and Profiling ABE / Figure CP.04 - Configuration Spec Characteristic Constraints

Project:

Configuration Model Instances
Figure CP.01 - Configuration Spec and Configuration
Figure CP.01 – I01 - Resource and Configuration Examples
Figure CP.02 - Configuration Specs Associations
Figure CP.02a - Configuration Specification Relationship
Figure CP.03 - Configuration Spec and Configuration Characteristics
Figure CP.03a - Entities Serve as Configuration Specifications
Figure CP.04 - Configuration Spec Characteristic Constraints
Figure CP.05 - ConfigurationSpec Governed by Policy
CompAtomicConfigSpecRel
ConfigRelationship
ConfigSpecCharUse
ConfigSpecConstraintMember
ConfigSpecRelationship
Configuration
ConfigurationSpecConstraint
ConfigurationSpecification

Figure CP.04 - Configuration Spec Characteristic Constraints : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/17/2023 12:07:26 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{6B0C022E-7E1B-40aa-8A3E-091BE363E2ED}

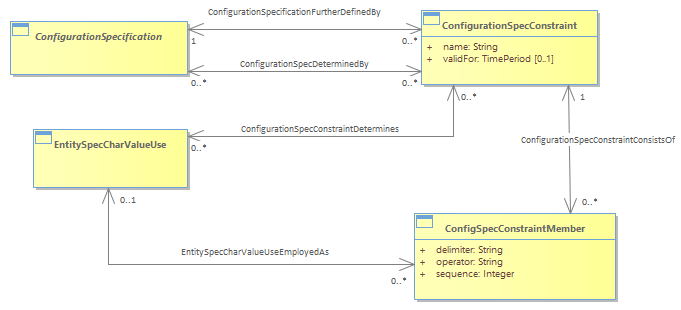

In some cases the determination of which ConfigurationSpecification should be used is dependent upon a number of variables. The following Figure shows the use of characteristics to represent these variables.<br/>The ConfigurationSpecificationFurtherDefinedBy relationship indicates constraints used to determine char value that is dependent on other char values.<br/>The ConfigurationSpecDeterminedBy relationship added so constraints can be used to "select" a ConfigurationSpec.<br/><br/>
