Figure CP.05 - ConfigurationSpec Governed by Policy : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/15/2023 3:19:42 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{1163AFED-8DA9-4977-ADA9-F4A6F7257B33}

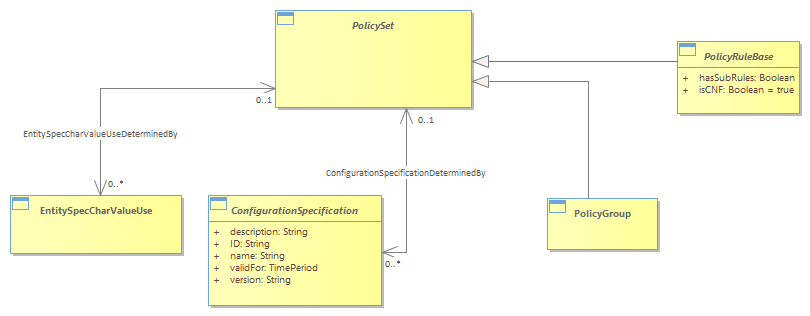

When constraints are more complex or explicit (“hard”) attributes are used Policy may be used to determine the ConfigurationSpecification to use or the value for a characteristic’s value. The following Figure shows the part of the model that supports this requirement.<br/>
