Figure D.02 - Document Specification

Header Image
Project:
Figure D.02 - Document Specification : SID diagram
Created: 2/26/2024 6:32:47 AM
Modified: 6/16/2024 9:42:37 AM
Project:
Advanced:

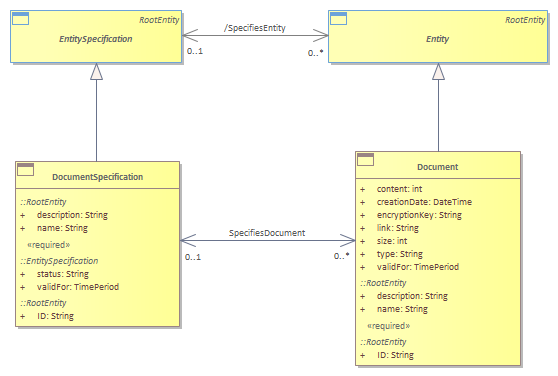

The Document ABE employs the SID EntitySpecification/Entity pattern.  <font color="#29313b">Conceptually, a DocumentSpecification defines the invariant attributes and relationships for defining a set of Documents. A Document uses these invariant characteristics and behavior and adds instance-specific characteristics.  The figure below highlights application of the EntitySpecification/Entity pattern.</font><br/><br/>
