Figure D.04 - Generated Document

Header Image
Project:

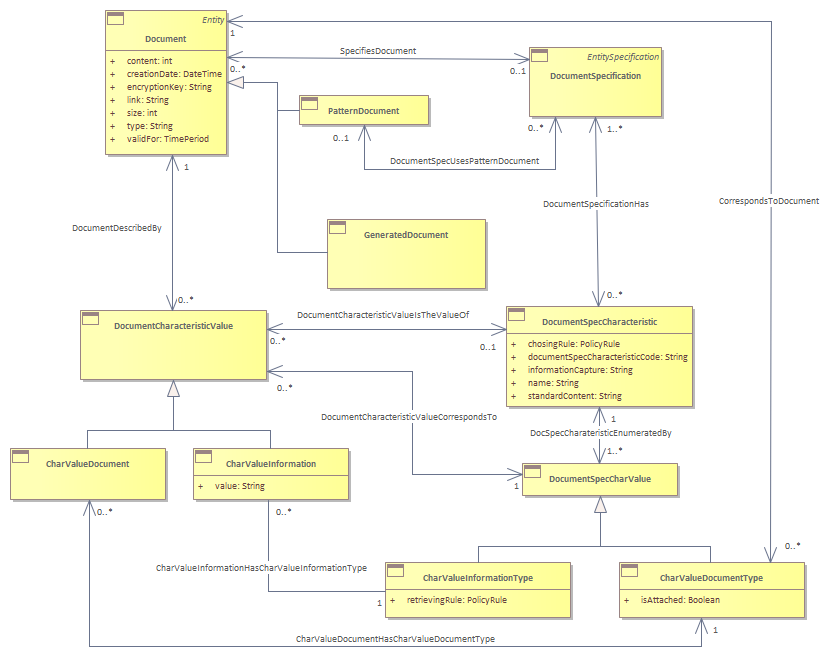

Figure D.04 - Generated Document : SID diagram
Created: 2/14/2024 10:34:32 AM
Modified: 6/18/2024 10:01:37 AM
Project:
Advanced:
A GeneratedDocument is built from a DocumentSpecification and a PatternDocument.<br/>The information and documents used to build a GeneratedDocument are specified through DocumentCharacteristicValues.<br/>A DocumentCharacteristicValue refers to a DocumentSpecCharacteristicValue.<br/>The type of DocumentCharacteristicValue (sub-classes) corresponds to the type of content that have been retrieved:<br/>• A CharValueInformation contains the value retrieved using the rule described in the CharValueInformationType (Ex: name of the customer).<br/>• A CharValueDocument specifies the Document that has been included in the final document according to the CharValueDocumentType.<br/>
