Figure PR.26 - Types of Cards

Header Image
Project:
Figure PR.26 - Types of Cards : Class diagram
Created: 3/28/2022 3:51:09 PM
Modified: 10/3/2023 6:52:36 AM
Project:
Advanced:

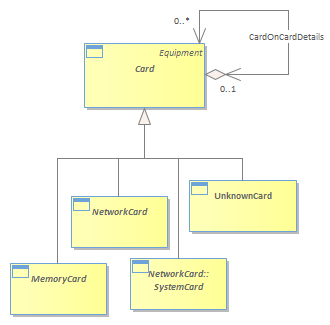

The Figure below illustrates the superclasses for defining different types of Cards.<br/>MemoryCards are dedicated to providing additional memory for use by other components of a Resource. NetworkCards are dedicated to providing networking functions, such as routing and forwarding. SystemCards are dedicated to providing system functions (e.g., controller cards). Finally, the UnknownCard object is used as a generic placeholder to represent Cards that are known to exist but are not yet identifiable via Software means.<br/>
