Figure RA.05 - RA and Policy Rule

MODA / Information Framework / Business Entity / Enterprise Domain / Enterprise Risk ABE / Revenue Assurance ABE / Figure RA.05 - RA and Policy Rule

Project:

RA Action_Response ABE
RA Assessment ABE
RA Control ABE
RA Key Performance Indicator ABE
RA Trouble Ticket ABE
RA Violation ABE
Figure RA.03 - RA Parameter
Figure RA.04 - RA Objective
Figure RA.05 - RA and Policy Rule
Figure RA.06 - RA and Policy Statement
Figure RA.07 - RA Consequence
Figure RA.08 - RA Consequence Subclasses
Figure RA.09 - RA Violation
Figure RA.10 - RA and Business Interaction
Figure RA.11 - RA Trouble Ticket
Figure RA.12 - RA Parameters and Entities
Figure RA.13 - RA Action
Figure RA.14 - RA Action and TroubleTickets
Figure RA.15 - RA Action and Response
Figure RA.16 - RA Trouble Ticket Root Cause
Figure RA.17 - RA Assessment
Figure RA.18 - RA Assessment Result

Figure RA.05 - RA and Policy Rule : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	8/16/2022 6:41:48 AM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{7E85D236-0198-4ec7-86CC-A9FA02128808}

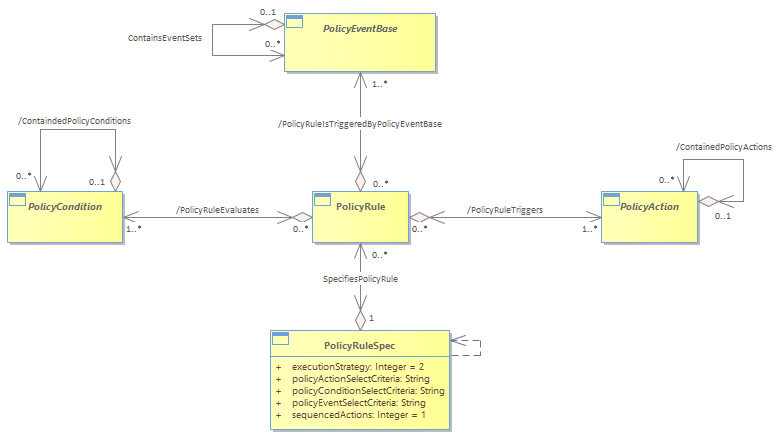

A PolicyGroup is a collection of rules used to define a related set of PolicyRules or other PolicyGroups. The PolicyRule entity acts as the heart of the Policy model and is shown in Figure RA.05. The rule is triggered by an event and comprised of one or more PolicyConditions and one or more PolicyActions. If a PolicyCondition(s) is met then one or more PolicyActions result. The PolicyRule is characterized further by a PolicyRuleSpec.<br/>
