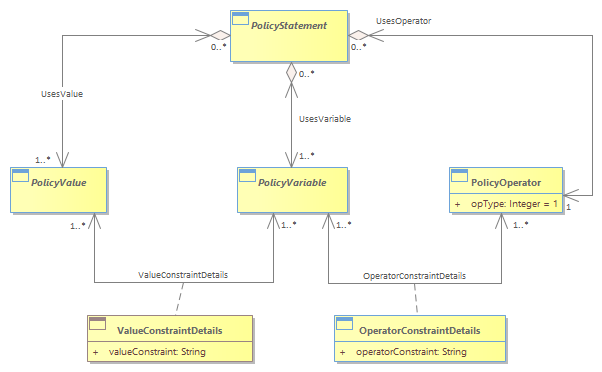

Figure RA.06 - RA and Policy Statement : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	7/18/2022 2:33:00 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{322D8609-72AC-42c3-BAA2-826E81790C07}

Each PolicyCondition and PolicyAction is defined by a PolicyStatement. A PolicyStatement is structured like a conventional “IF” statement, with a variable, operator, and value.<br/>
