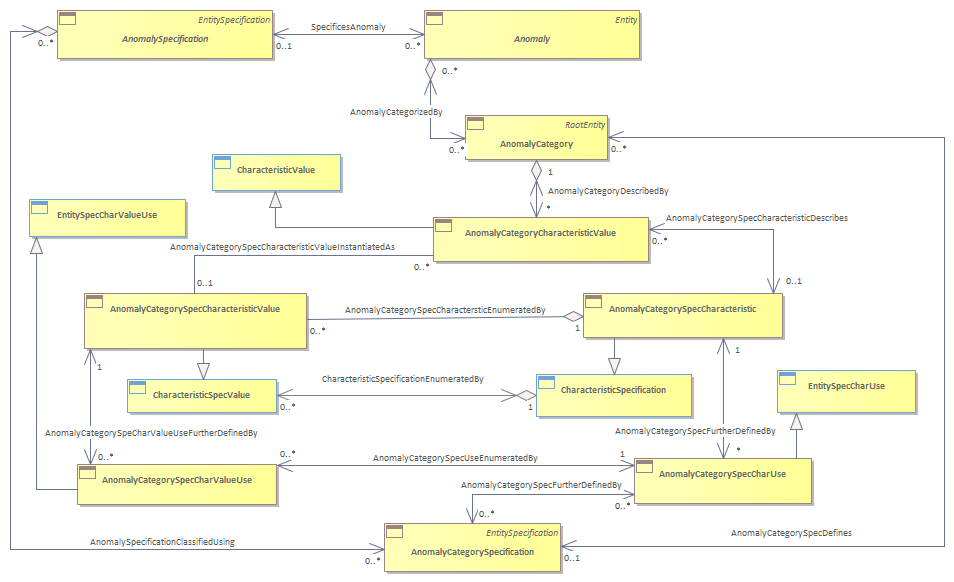

Figure An.07 - Anomaly Category Characteristics & Entity Associations

Further detailing the Anomaly entity relationship,the following figure depicts relationship between Anomaly, AnomalyCategory and AnomalyCategorySpecification.<br/>AnomalyCatgorySpecCharacteristic (derived from CharacteristicSpecification in Characteristic ABE) is used for defining characteristic and t’s potential values using the entity AnomalyCategorySpecCharateristicValue (derived from CharacteristicSpecValue in Characteristic ABE).<br/>The possible values defined using AnomalyCategorySpecCharacteristicValue is associated with AnomalySpecCharacteristic using relationship AnomalySpecCharacteristicEnumeratedBy<br/>The use of AnomalyCategorySpecCharacteristic within the AnomalyCategorySpecification is attributed through AnomalyCategorySpecCharUse<br/>AnomalyCategorySpecCharacteristic and AnomalyCategorySpecCharUse are associated using the relationship AnomalyCategorySpecCharacteristicFurtherDefinedBy<br/><br/>AnomayCategorySpecCharatectisticValue and AnomalyCategorySpecCharValueUse are associated using the relationship AnomalyCategorySpecCharacteristciUseFurtherdefinedBy<br/>
