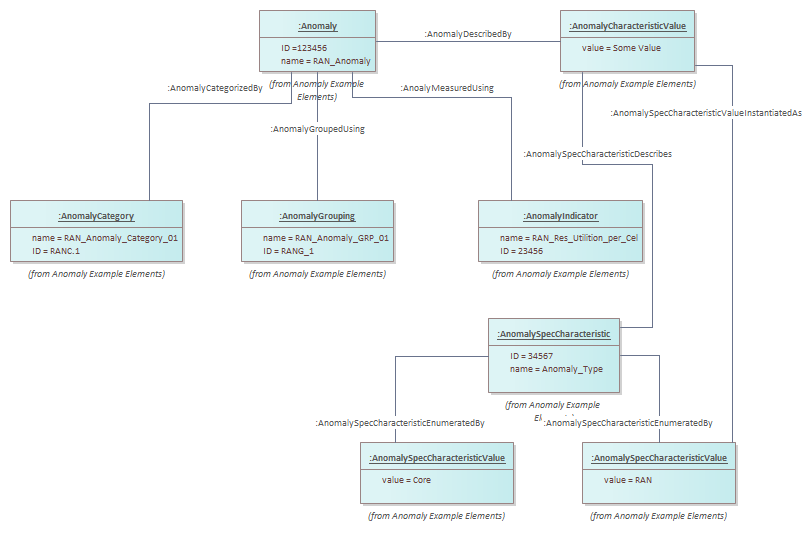

Figure An.11 - Anomaly Category Example For RAN Anomaly Management : Object diagram

Created:	5/2/2023 9:26:41 AM
Modified:	10/16/2024 9:04:55 AM
Project:
Author:	Kevin Scaggs
Version:	2.0
Advanced:
ID:	{A6251FCB-FF3E-4e4d-A6DA-AB99CBC0AD2E}

The anomaly management process is governed based on contextual information as well as the Anomaly characteristics defined through an AnomalySpecification. An Anomaly is described using AnomalySpecification which includes definition of AnomalyCategory , AnomalyGrouping criteria, AnomalyIndicators, Anomaly specific characteristics and AnomalyApplicability. This figure shows the key ingredients that is used to describe the Anomaly being managed. The individual entities with corresponding details are shown in subsequent diagrams.<br/>
