Figure An.08 - Anomaly Indicator Entity Associations

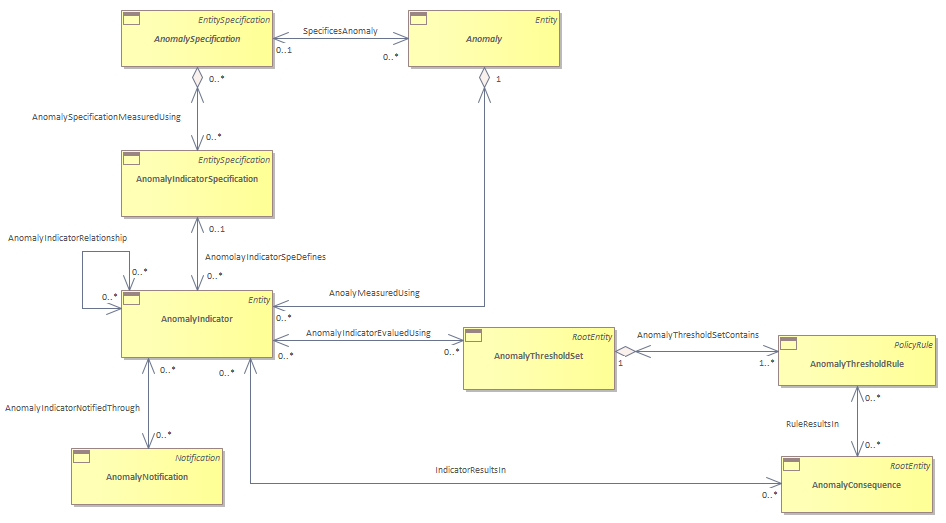

<font color="#29313b">This figure details the relationship between AnomalyIndicator , AnomalySpecification, and AnomalyIndicatorSpecification along with AnomalyNotification and AnomalyConsequence</font><br/><font color="#29313b">AnomalyIndicatorSpecification defines AnomayIndicator. AnomalyThresholdSet can have one or more AnomalyThresholdRules.</font><br/><font color="#29313b">AnomalyIndicator is evaluated using AnomalyThresholdSet and one AnomalyIndicator may have multiple AnomalyThresholdRules</font><br/><font color="#29313b">AnomalyIndicator can have multiple AnomalyNotification associated with it. AnomalyNotification is used to notify any variations in the AnomalyIndicator value which can further be used for initiating other Anomaly Management correlation </font><br/><font color="#29313b">AnomalyIndicator can result in multiple AnomalyConsequence(s) associated with it; which is defined by the AnomalyIndicatorThresholdRule.</font><br/>
