Figure CI.01a - MTOSI TMD Profile Mechanism using Characteristics

Header Image
Project:
Figure CI.01a - MTOSI TMD Profile Mechanism using Characteristics : Object diagram
Created: 5/3/2022 9:23:07 AM
Modified: 5/3/2022 9:28:19 AM
Project:
Advanced:

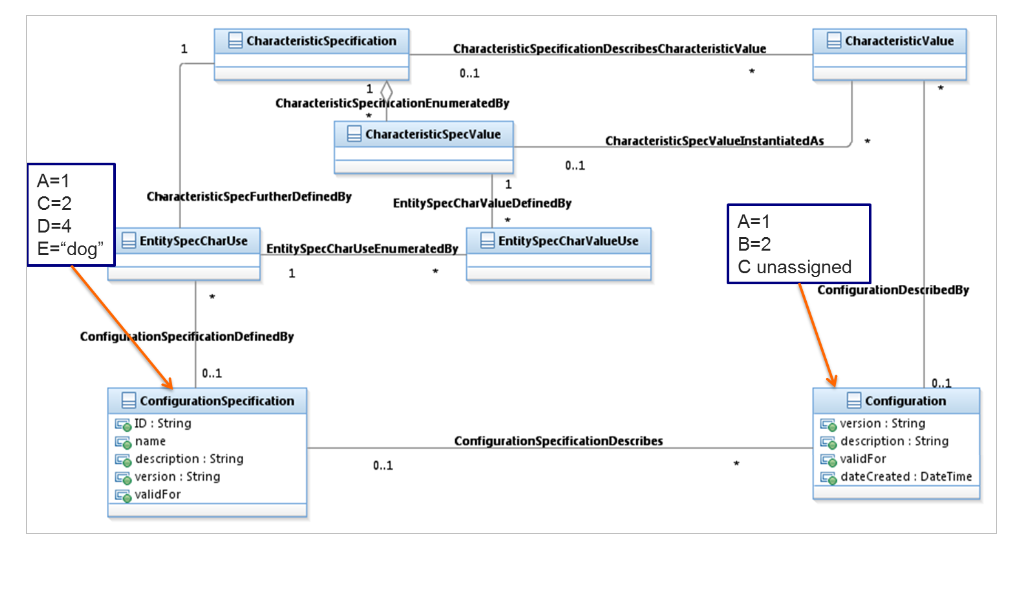

<font color="#29313b">This section uses Object/Instance diagrams to illustrate how various scenarios are supported by the model.  Creating a Configuration without a ConfigurationSpecification shows the class diagram with callouts showing instances that are used to show how an instance of a Configuration can be created without an associated ConfigurationSpecification.</font><br/><font color="#29313b">The Configuration and ConfigurationSpecification exist but are not associated at this point. </font><br/>
