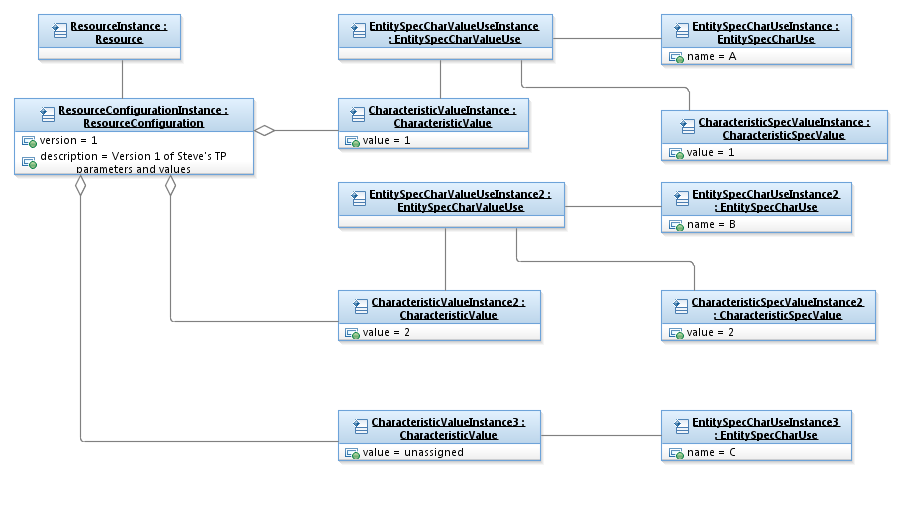

Figure CI.02 - MTOSI TMD Profile Mechanism - Configuration With No Specification Using Characteristic : Object diagram
Created:
5/3/2022 9:25:22 AM
Modified:
5/3/2022 9:28:19 AM
Project:
Author:
Giu Platania
Version:
1.0.0
Advanced:
ID:
{98D5900C-8FDA-4d32-9BAB-0398C98EA2B1}
<font color="#29313b">Figure CI.02 - MTOSI TMD Profile Mechanism - Configuration With No Specification Using Characteristic shows how characteristics are used to assign values to an instance of a ResourceConfiguration directly without using an instance of ResourceConfigSpec.</font><br/>
