Traffic Map Table Detail

MODA / Information Framework / Business Entity / Patterns Domain / Configuration and Profiling ABE / Configuration Model Instances / Traffic Map Table Detail

Project:

Figure CI.01a - MTOSI TMD Profile Mechanism using Characteristics
Figure CI.02 - MTOSI TMD Profile Mechanism - Configuration With No Specification Using Characteristic
Figure CI.03 - MTOSI TMD Profile Mechanism - Configuration with No Specification Using Resource
Figure CI.04 - MTOSI TMD Profile Mechanism - Specification Using Characteristics
Figure CI.05 - MTOSI TMD Profile Mechanism - ConfigurationSpecificationification Using Resource Entity
Figure CI.06 - MTOSI TMD Profile Mechanism - ConfigurationSpecificationification Applied Using Characteristic
Figure CI.07 - MTOSI TMD Profile Mechanism - ConfigurationSpecification Applied Using Resource Entity
Additional MTOSI TMD Profile Mechanism Examples
Figure CI.08 - MTOSI TMD Profile Mechanism - Removing Association to ConfigurationSpecification
MTOSI ASA Profile Mechanisms
Traffic Map Table
MTOSI TC Profile Mechanism – Model Support
Traffic Map Table Detail
Figure CI.09 - MTOSI TC Profile Mechanism Constraint

Traffic Map Table Detail : Object diagram

Created:	5/3/2022 9:43:33 AM
Modified:	6/2/2022 9:55:39 AM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{EBD05155-A8A0-4ec1-81B9-FC5D5B72B2A0}

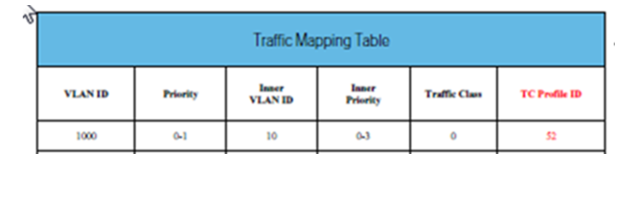

<font color="#29313b">Shown in the next figure is an example of how the constraint portion of the model supports the selection of profile #52 (ConfigurationSpecification) and an EntitySpecCharValueUse traffic class of 0.</font><br/>
