Figure CI.05 - MTOSI TMD Profile Mechanism - ConfigurationSpecificationification Using Resource Entity

Header Image
Project:

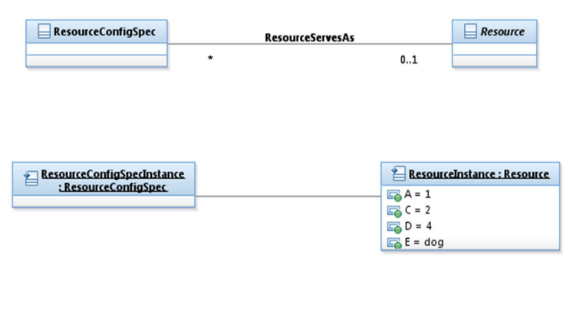

Figure CI.05 - MTOSI TMD Profile Mechanism - ConfigurationSpecificationification Using Resource Entity : Object diagram
Created: 5/3/2022 9:29:29 AM
Modified: 5/25/2022 4:52:05 AM
Project:
Advanced:
<font color="#29313b">Alternatively if the attributes A, C, D, and E are explicitly modeled as attributes of a Resource then an instance of Resource can serve as a ResourceConfigSpec to assign values to these attributes for any other Resource that contains these attributes.  Figure CI.05 - MTOSI TMD Profile Mechanism - ConfigurationSpecificationification Using Resource Entity shows this use of a Resource and an instance of it.</font><br/>
