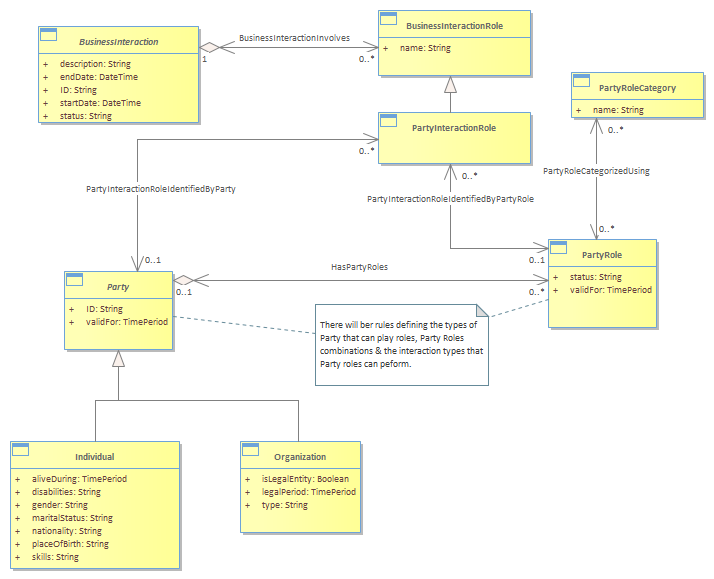

Figure P.05 - Parties Interact Via Their Roles : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	5/14/2024 11:25:13 AM
Project:
Author:	TMF
Version:	1.0.0
Advanced:
ID:	{CAFF13CD-C925-454d-9567-9DA92A256686}

PartyRoleCategory allows for PartyRoles to be categorized (e.g. into Customer Demographics)<br/>A BusinessInteraction will involve one or more Parties playing roles participating in the value fabric to provide Customer value.<br/>A BusinessInteraction may also have links to Product (through BusinessInteractionItem) & Location.<br/>For more information on Business Interaction refer to the corresponding paragraph in this guide book.<br/>
