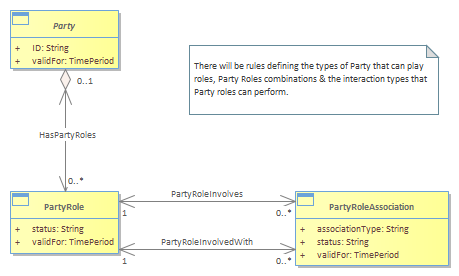

Figure P.06 - Parties Can Be Associated Via Their Roles : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/8/2022 11:06:11 AM
Project:
Author:	TMF
Version:	1.0.0
Advanced:
ID:	{D55C67E0-9795-4380-9209-9AE0C9F6231F}

We need to be able to show associations between Parties playing roles that are not directly involved in the value fabric.<br/>Examples of these associations include<br/><ul>
<li>Organizational associations in the service provider’s own business (organization unit – employee, organization unit – organization unit)</li><li>Associations in other Organizations participating in the value fabric (organization unit – employee, organization unit – organization unit)</li></ul>
PartyRoleAssociation must not be linked to Location, Product or Agreement.<br/>
