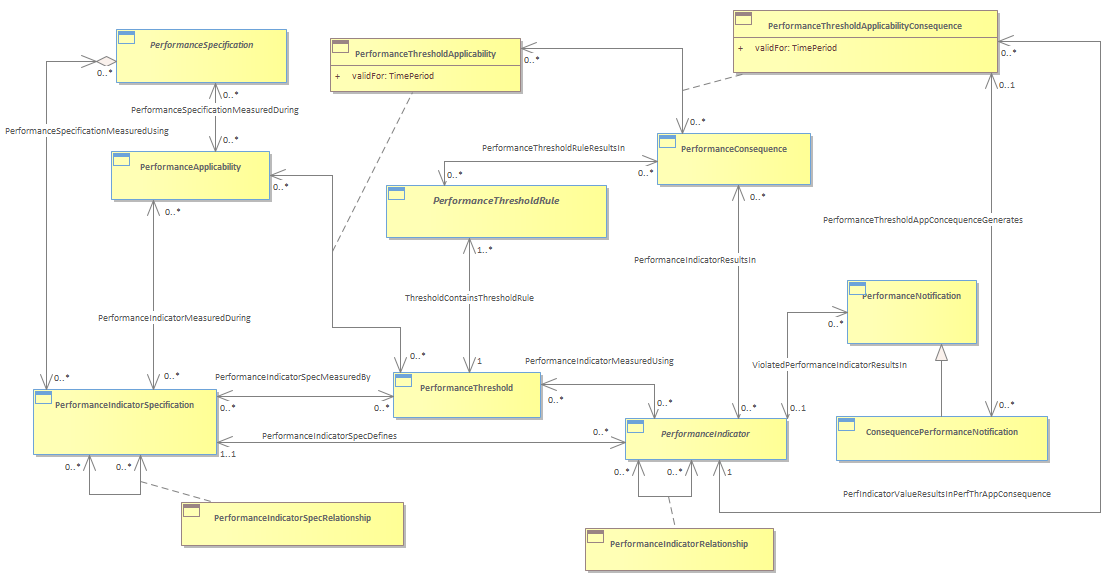

Figure PF.07 - Performance - Applicability : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
9/17/2023 12:22:04 PM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{02D6DCE2-F0B2-456f-8503-8566BA4397FC}
Performance in general, indicators, thresholds, and consequences may apply a certain times or not apply during certain times. A set of performance entities, PerformanceApplicability, PerformanceThresholdApplicability, PerformanceThresholdApplicablityConsequence, controls applicability as shown in following Figure. For example, an instance of a PerformanceThreshold may apply to only to peak usage ours of 8AM – 5PM; or a PerformanceConsequence for an instance of PerformanceThreshold may only apply on the weekends.<br/>
