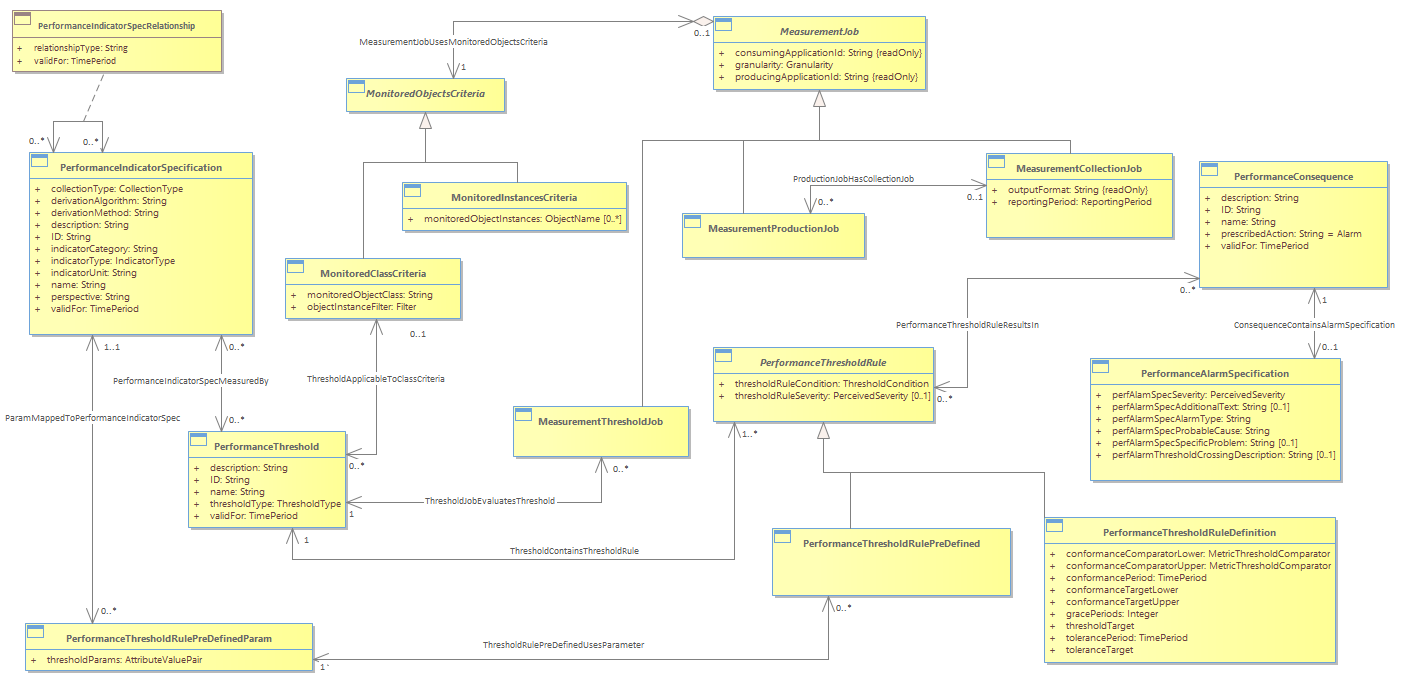

Figure PF.18 - Threshold Job, Threshold : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
9/16/2023 6:30:54 PM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{504CD750-AF9C-43b5-B316-9E17F315D1A3}
The ThresholdJob is an additional subclass of the MeasurementJob. It is used to periodically evaluate Performance Thresholds that are associated to it and to specify Threshold Crossing Alarms as a consequence when threshold rules are crossed. The classes that take part in the Threshold Job specification are shown in Figure below.<br/>
