Figure PF.09 - Performance Category : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
6/6/2022 10:58:07 AM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{4E1FD835-D64C-4cf6-BB29-07725E6229D3}

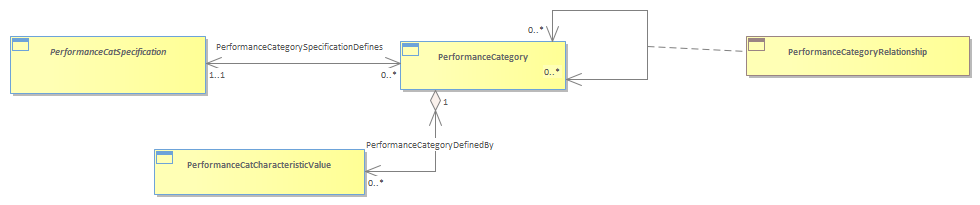

The next figure depicts instances of PerformanceCategories that are based on a PerformanceCategorySpecification. For example, a Codec specification has category instances of 243-PCMU, 230-GSM, and so forth. Any number of category instances can be associated to a specification.<br/>Also shown in the figure is an association between a PerformanceCategory and itself and the association class PerformanceCategoryRelationship. The relationship is governed by the association between a PerformanceCategorySpecification and itself. It defines associations that exist between categories. For example, the Codec instance 243-GSM is related to the BearerType instance 999 and the MediaType instance 546. These relationships further define the Codec instance in the example.<br/>
