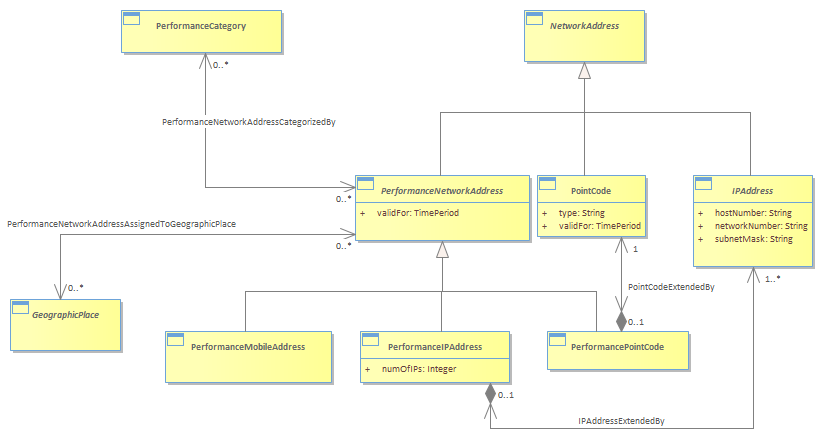

Figure PF.11 - Performance Network Address (Mobile, IP Address and Point Code) : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
9/16/2023 6:25:12 PM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{1B794E03-E6C2-4d50-A45C-E3D3BFE8C265}
The next figure, depicts the three types of PerformanceNetworkAddresses, MobilePerformanceAddress, PerformanceIPAddress and PerformancePointCode, which currently exist in the model. Additional network addresses can be added with minimal impact to the model.<br/>
