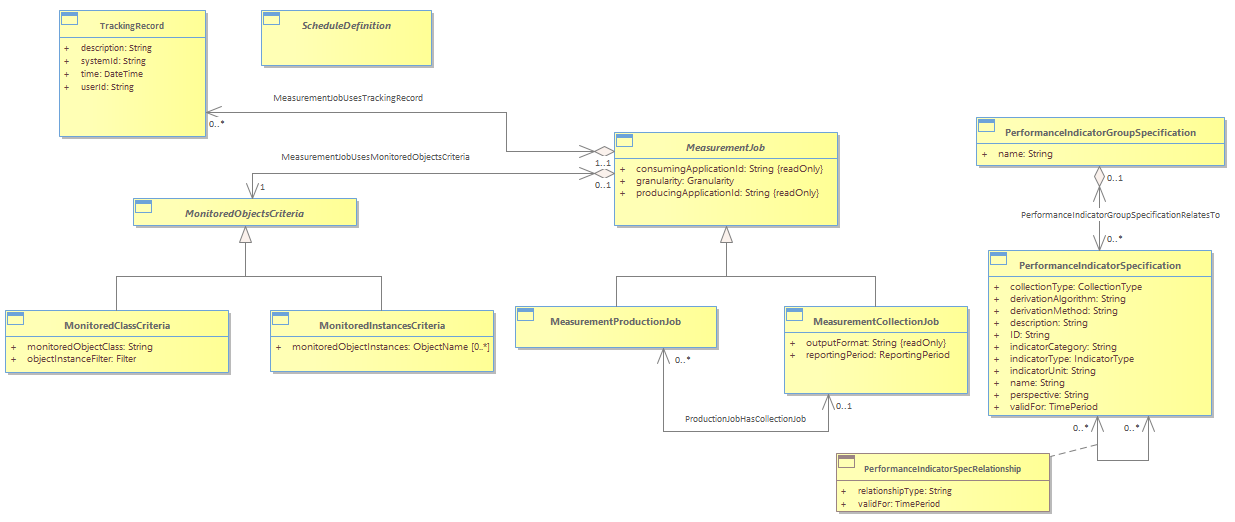

Figure PF.16 - Performance Production & Collection

A Measurement Collection Job is used to control the periodic collection of performance indicators, implemented as a sub-entity of the PM Measurement Job. As the Measurement Collection Job inherits from the Measurement Job, it includes all attributes and associations defined for the base measurement job entity. The Measurement Collection Job and its attributes are shown in figure PF.16 below.<br/>Similarly, a Measurement Production Job is defined as a sub-entity of the Measurement Job. It is used to define a job for generating indicators. A Production Job may have a Collection Job associated to it.  The Production Job is described is also shown in Figure below.<br/>
