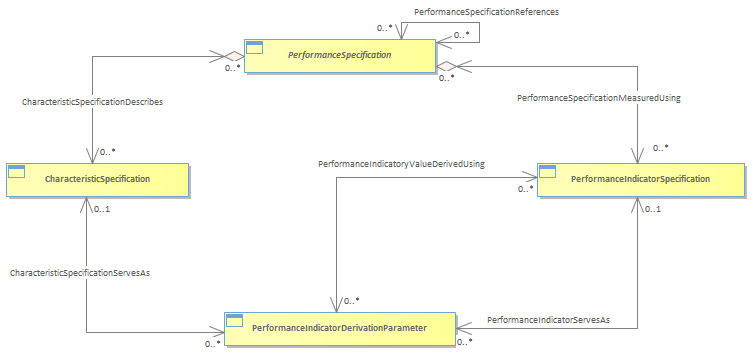

Figure PF.13 - Performance Indicator Derivation Parameter : Class diagram
Created:
3/28/2022 3:51:09 PM
Modified:
6/6/2022 11:36:13 AM
Project:
Author:
broth
Version:
1.0.0
Advanced:
ID:
{36909CF8-C24B-4e2c-B82B-808061F7195E}
One area of the model that was preliminarily investigated was how characteristics and other performance indicators can be used in the calculation of a value for a PerformanceIndicator. Following Figure shows that a PerformanceIndicator can many derivation parameters. One parameter may be defined by a CharacteristicSpecification; another may be defined by a PerformanceIndicatorSpecification. Additional analysis is needed to fully define this part of the model.<br/>
