Figure L.08 - Place, Geographic Location, Address & Site

MODA / Information Framework / Business Entity / Shared Domain / Location ABE / Figure L.08 - Place, Geographic Location, Address & Site

Project:

Geographic Place ABE
Local Place ABE
OpenGisSFS ABE
Figure L.00 – Showing how Location Fits in
Figure L.01 – Possible Service Provider Spatial Data
Figure L.02a – Binary Topological Relationship Examples (1)
Figure L.02b – Binary Topological Relationship Examples (2)
Figure L.02c – Interlinking Geographic & Local Place
Figure L.03 - Types of Places (Overview Hierarchy Diagram)
Figure L.04 - Location
Figure L.05 - Address
Figure L.05 – I01 – Illustration of Physical & Logical Address
Figure L.06 - Logical Addresses
Figure L.07 - Site & Site Role
Figure L.08 - Place, Geographic Location, Address & Site
Figure L.09 - Geographic Geometry [OGIS]
Figure L.10a - Examples of Possible Geographic Locations
Figure L.10b - Geographic Location Symbology
Figure L.11a – Local Coordinate System
Figure L.11b – Example Bounding Volume
Figure L.11c – Example of Rack Placement
Figure L.11d - Local Places are Defined using Local Coordinate Systems
Figure L.12 - Types of Address
Figure L.13 – Example of a Rack
Figure L.14 – Example of a Network Inventory Naming Graph
Figure L.15 - Links to Other Parts of the SID Model
Figure L.16 - Implement using Pluggable Components
Figure E.1.1 – A Simple Place
Figure E.1.2 – Class Diagram 1
Figure E.1.3 – Object Diagram 1
Figure E.1.4 – A Simple Site
Figure E.1.5 – A Simple Local Place
Figure E.1.6 – Class Diagram 2
Figure E.1.7 – Object Diagram 2
Figure E.2.1 – Network Diagram
Figure E.2.2 - Cable Route Class Diagram
Figure E.2.3 - Cable Route Object Diagram
Figure E.3.1 - Multistory Building
Figure E.4.2 - Multistory Building Class Diagram
Figure E.4.3 - Multistory Building Object Diagram
Figure E.5.1 - Nearest “Pizza Barn”
Figure E.5.2 - Location Based Service Class Diagram
Figure E.5.3 - Location Based Service Object Diagram
AddressContactMediumRole
Place
PlacePhysicalResourceAssoc

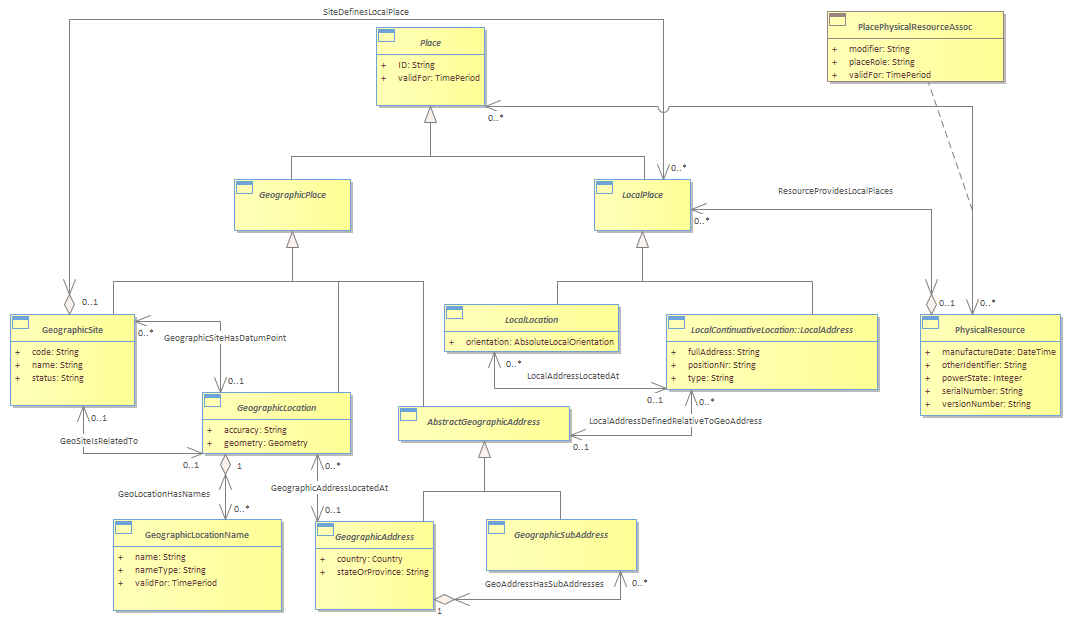

Figure L.08 - Place, Geographic Location, Address & Site : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	9/27/2023 9:38:54 PM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{D27AA46D-DD5B-49e8-8210-996F65E820F4}

The following Figure summarizes main entities concerning Place, Geographic Location, Address & Site.<br/>This model allows for changes in location detail over time. A Service Provider may start by having external address or Geographic Location information. Then other information, including Local information, can be added later as required (refer example 1).<br/>
