Figure L.11b – Example Bounding Volume : Object diagram

Created:	5/3/2022 2:08:41 PM
Modified:	5/3/2022 2:10:56 PM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{402B75B9-A746-4687-AAB0-7AE334D7CF4C}

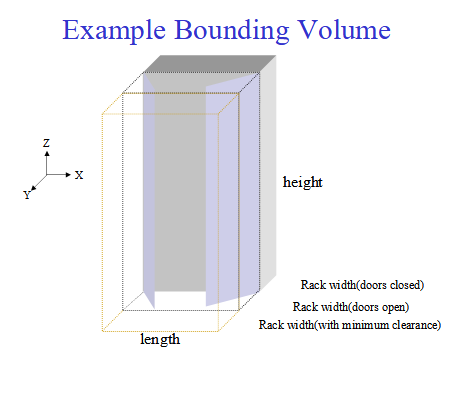

<font color="#29313b">Physical Resource specifications (in the SID Physical Resource model) should include three dimensional geometric representation(s). The geometric representation should include a minimum bounding volume and also allow for two dimensional representations (each face of the minimum bounding volume) and provide reference point(s) for the shape (for placement).</font><br/>
