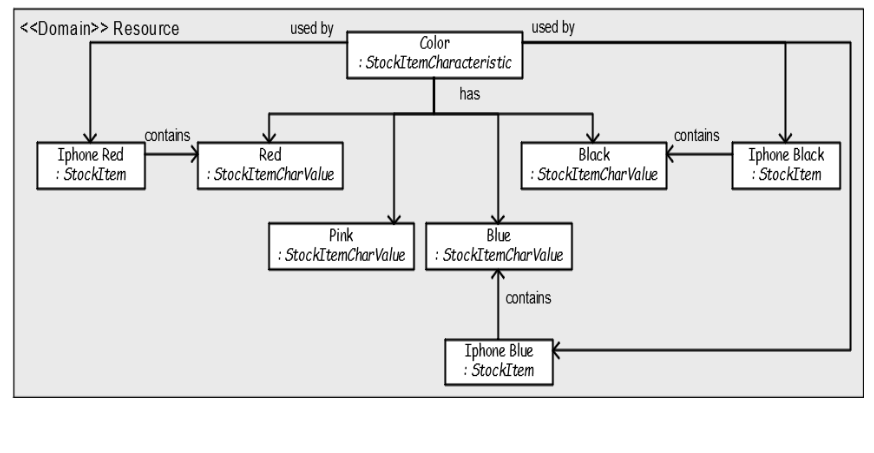

Figure SI.01a-I01 - StockItem Characteristics simple : Object diagram

Created:	5/5/2022 3:14:37 PM
Modified:	5/5/2022 4:57:39 PM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{C4CAC22C-6505-4b45-BD4E-AD6022332F69}

An Iphone might be Red, Blue or Black. The Color is a Characteristic that might have more values than the ones available for an Iphone as it might be reused by several StokItems. A value might be contained by no StockItem.
