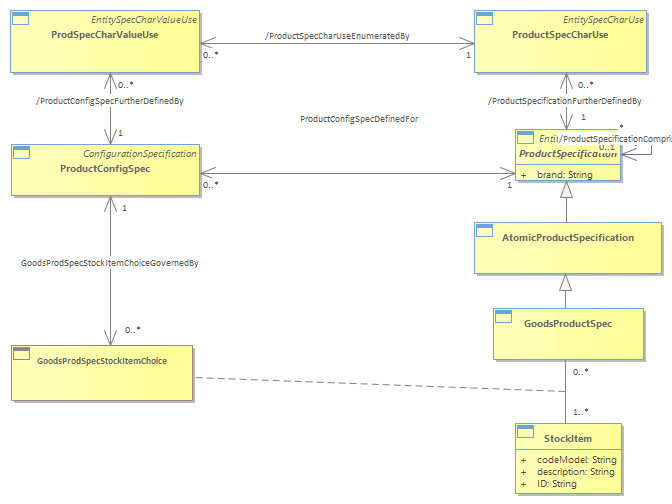

Figure SI.01b - StockItem and ProductConfigurationSpec : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	10/7/2023 7:11:32 AM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{C4DDEF2A-9211-4e19-92A5-1B2FC1F3F21B}

In the context of a ProductConfigurationSpec used for identifying a StockItem, it specifies a unique value for each configurable characteristic of the ProductSpecification.<br/>
