Figure SI.04-I03 - Stock Item Shipment: StockItemRequestReplenishment : Object diagram

Created:	5/5/2022 4:21:04 PM
Modified:	5/16/2022 5:46:24 PM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{7872CBEC-6132-4604-839E-745249447DB4}

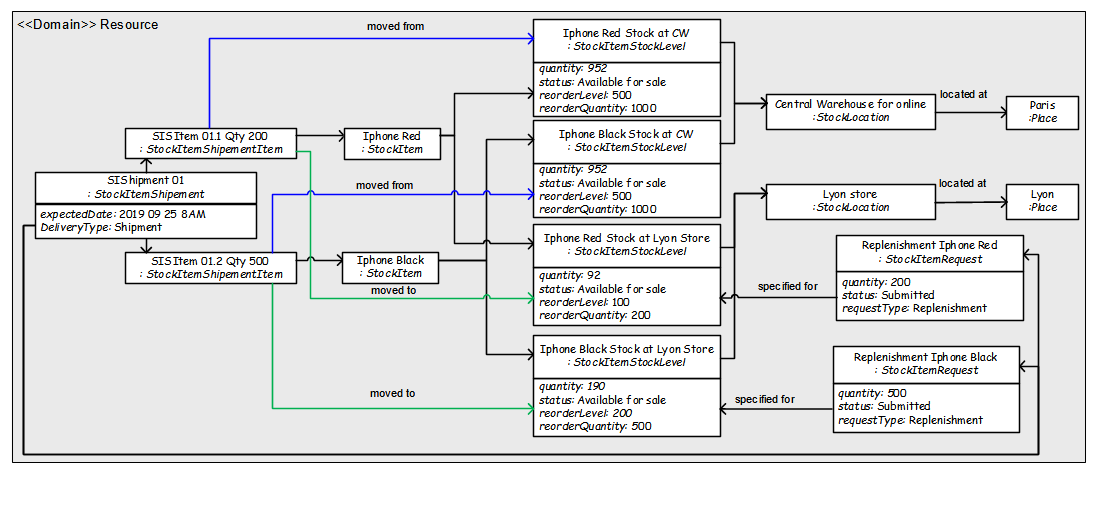

Lets’ consider “Lyon store” StockLocation where both Iphone Red and Black are under reorder Level. A Replenishment StockItemRequest will be triggered for each of them. If both StockItems to be shipped to the same location are available in the same StockLocation, it will be possible to identify a unique Shipment.
