Figure SI.01a-I02 - StockItem Characteristics complex : Object diagram

Created:	5/5/2022 3:18:17 PM
Modified:	5/5/2022 4:57:39 PM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{A5601C91-C698-49e7-9B13-9704F1716CD6}

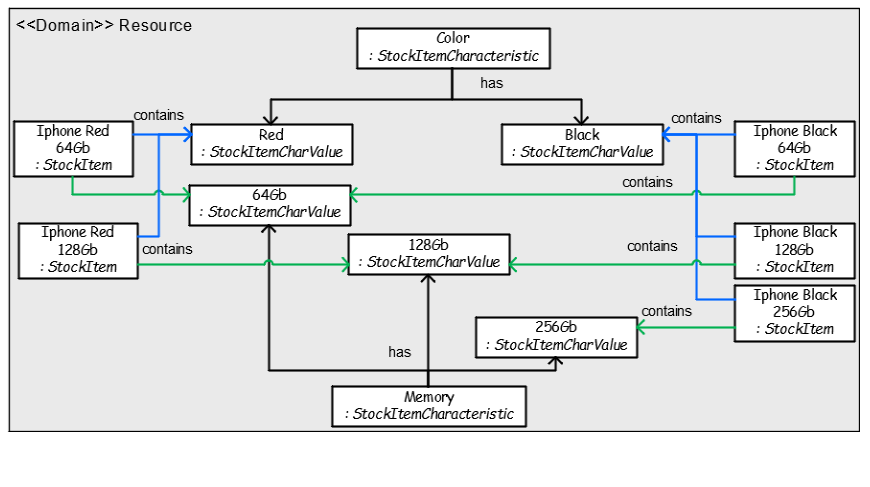

An Iphone may exist with different Colors and different Memories. The Iphone Black exist with 64Gb, 128Gb or 256Gb Memory. The Iphone Red only exist with 64Gb or 128Gb Memory.
