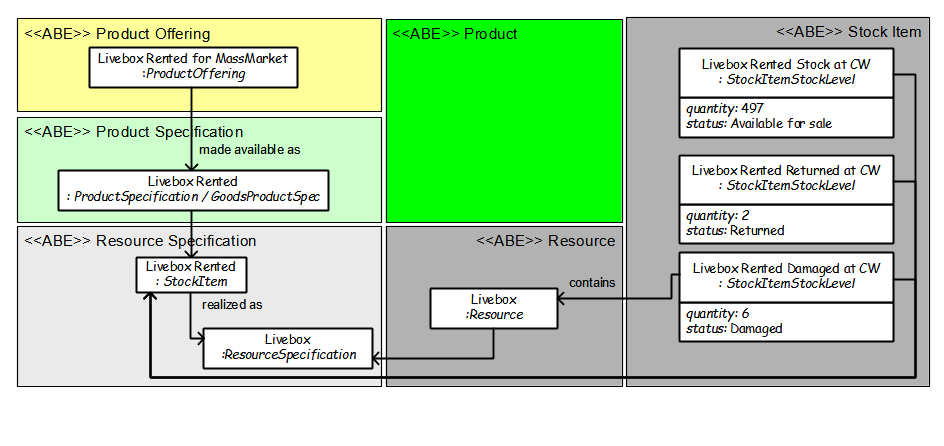

Figure SI.02-I06e StockLocation and Resources : Object diagram

Created:	5/10/2022 11:27:43 AM
Modified:	5/10/2022 11:32:59 AM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{FDCCD1F7-FB1C-494c-BEEF-5ACBF36A00A9}

Then it will be analysed and either it will be assigned to Damaged or Available for sale stock level. In this illustration, it is moved to the Damaged Stock Level.
