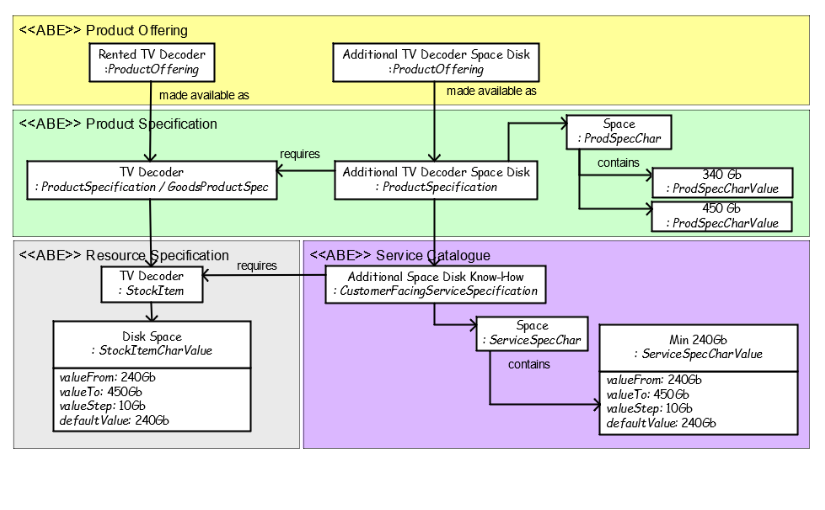

Figure SI.01a-I04 - TV decoder additional space : Object diagram

Created:	5/5/2022 3:22:33 PM
Modified:	5/5/2022 4:57:40 PM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{53BA543E-F82E-4820-9ABE-9A8DD91E4E26}

The TV Decoder is always provided with a configuration of 240 Gb and it can’t be modified by the Customer Order. The corresponding ProductSpecification may propose only a sub-set of possible values and the OfferSpecification might be related to Tariffs according to the configuration. To increase the TV Decoder Space Disk, we use the “Additional Space Disk” Know-How.
