Figure SI.02-I06d StockLocation and Resources : Object diagram

Created:	5/10/2022 11:26:19 AM
Modified:	5/10/2022 11:27:03 AM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{5573A9E1-0A5F-4eb9-BE2B-E68B5A53563A}

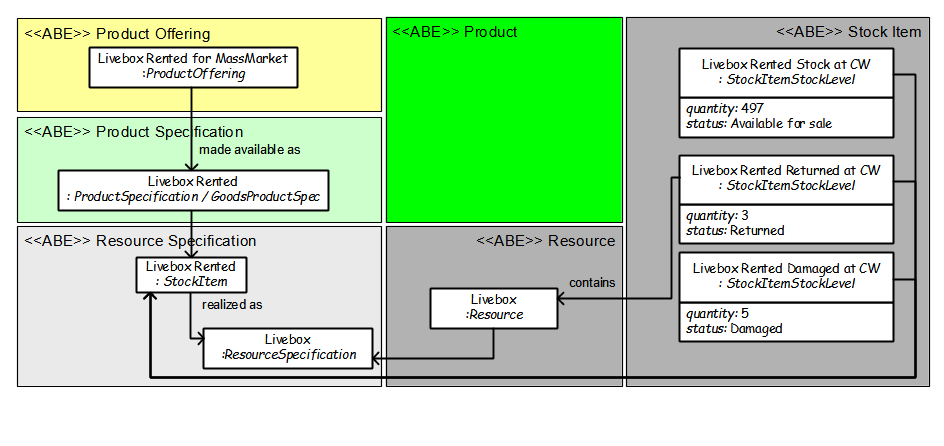

<font color="#29313b">When John Smith terminates his Rented Livebox Offer and gives back the Resource, the Resource is assigned to the Returned StockItemStockLevel.</font><br/>
